Product combination principle:
Module form + combination method + product form + control form = final product
Product Principle

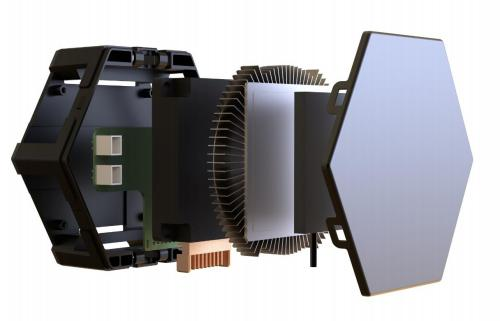

Module composition: surface cooling plate, Tec, heat dissipation plate, fan, circuit board, housing
Surface conductive sheet: stainless steel, aluminum sheet (anodized)
Tec: 40*40*04,30*30*04,25*25*3.5 (size)
12702 (127 pairs of particles 12V operating at 2A)
Fan: 5010 (square 50 mm wide 10 mm thick) Circuit board: control circuit conduction
Module: module specification + air outlet mode + disassembly mode
Specification 1: large ice bricks
Size: 82.8 mm diagonally
Weight: about 90g
Height: 24.5 mm
Working power: 3w-6w
Working voltage: 5v/12v
Working mode: cooling + heating
Cooling degree: reduce by 15-20 degrees
Temperature: 40-50 degrees

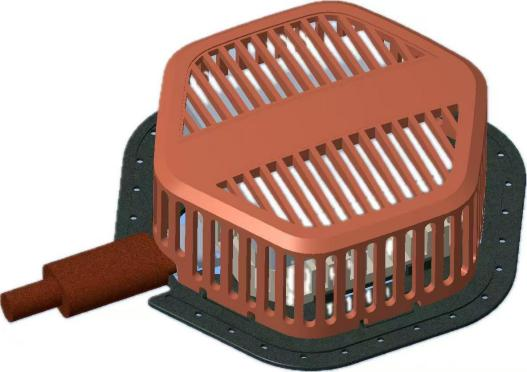

Air outlet: side air outlet
Disassembly method: removable
Suitable for: backpack, vest, tactical vest
Module: module specification + air outlet mode + disassembly mode
Specification 2: Small ice brick (customizable)
Size: diagonal 58.8mm Weight: about 60g
Height: 21.5 mm
Working power: 2.5w-4w
Working voltage: 5v
Working mode: cooling + heating cooling degree: reduce 10-15 degrees
Temperature: 40-50 degrees

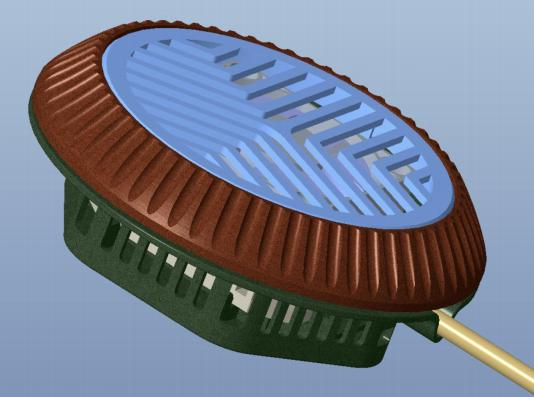

Air outlet mode: top air outlet / ring air outlet
Disassembly method: non-detachable (silicone method is detachable) Suitable for: clothes, tank tops, pet carriers
The module appearance is customizable
Combination method
seam/cement/screw/substrate removal
silica gel

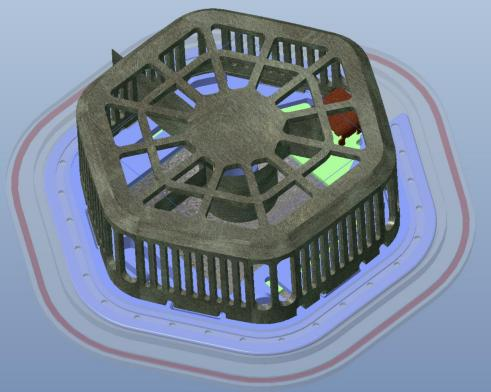

The small ice brick is held by a silicon rubber ring to achieve detachability
sewing
The hem should be stitched at least 6 mm, and it is recommended to be 6-8 mm
Synthesis
Rotating bite, removable

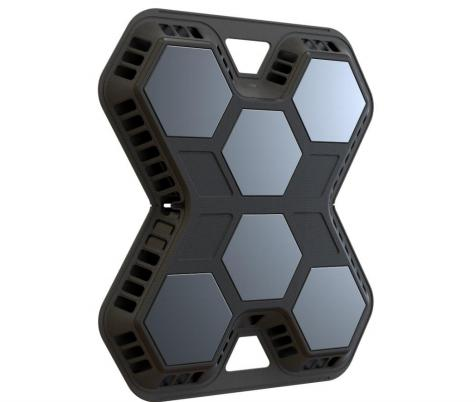

Backplane disassembly
The ice brick can be removed by the back panel clip
Product form: power bank + power size + connection form + number of modules
Power of the battery bank: 10-36w, more than 15w requires customization of the battery bank
Power: Power is within 15w, no additional custom charging battery required
Connection type: Welding / Terminal / Typec
Wiring method of harness: depends on the specific situation. The following figure shows one way
Module quantity: 1 drag 2/3/4 can be within 15w conventional charging battery, more than 4 or more than 15w need to customize the main control switch circuit and charging battery
Control form: intelligent/non-intelligent
Intelligent design:
Through distance sensor + temperature sensor + gyroscope, it can work immediately after getting on the bus without manual control, and can realize temperature regulation according to the change of ambient temperature, intelligent temperature control, AI adjustment;
Non-intelligent design:
By pressing the button to adjust the gear, users can adjust the temperature by themselves, control independently, low cost, high cost performance.
